Arduino based node

Components

  • ATmega328 (with Arduino bootloader)
  • RFM69HW 868MHz or 915Mhz module
  • MCP1700 3.3v Voltage Regulator
  • 28pin DIL IC Socket
  • 2x 1uF Ceramic Cap
  • Various headers and sockets
  • Stripboard

Guide

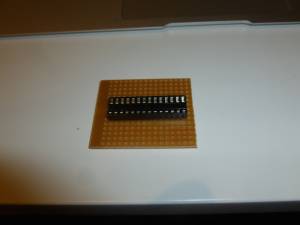

Step 1

  • Solder 28pin DIL IC socket to the strip board
  • Cut traces along the centre of the socket
  • Check that there is no conductivity between the two halves

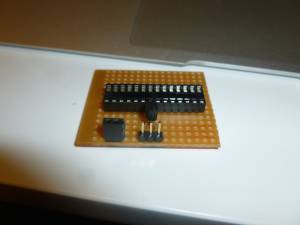

Step 2

  • Solder voltage regulator with 1uF capacitor
  • Connect voltage output to Vcc as well as ground
  • Solder header for Serial (Tx and Rx)

Step 3

  • Program the ATmega328 with the arduino bootloader
  • Upload simple script to the micro
  • Connect up the usb-serial convertor and test that everything is working

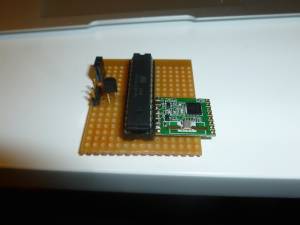

Step 4

  • Solder connecting wires to RFM69HW (GND, NSS, SCK, MISO, MOSI)
  • Line up with the ATmega328's corresponding pins. You'll need to bend your connecting wires a bit to fit through the holes in the strip board. Solder these in place.
  • The other 2 pins that need to be connected are VCC and DIO0 which are best connected with insulated wire.
    • VCC → 3.3v
    • DIO0 → pin 2 (Interrupt 0)

Step 5

  • Upload repeater script to test RFM69HW
  • Check either with Funcube or that it is repeating to other nodes
    • Its been found that some modules are slightly off frequency and so need adjustment to match. The easist way is to use a funcube or RTL dongle and then adjust the frequency to line up with other nodes.

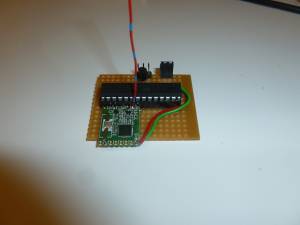

Step 6

  • Solder antenna to ANT and GND pins

Schematic

Uploading new arduino scripts

  • As the current arduino is programmed just to use its internal oscillator it has a special board identification which needs to be added to your IDE. You need to find the boards.txt and add to the end

For Arduino 1.6.1 use this script:

##############################################################

atmega328bb.name=ATmega328 on a breadboard (8 MHz internal clock)

atmega328bb.upload.tool=avrdude
atmega328bb.upload.protocol=stk500
atmega328bb.upload.maximum_size=30720
atmega328bb.upload.speed=57600

atmega328bb.bootloader.tool=avrdude
atmega328bb.bootloader.low_fuses=0xE2
atmega328bb.bootloader.high_fuses=0xDA
atmega328bb.bootloader.extended_fuses=0x07
atmega328bb.bootloader.path=arduino:atmega
atmega328bb.bootloader.file=atmega/ATmegaBOOT_168_atmega328_pro_8MHz.hex
atmega328bb.bootloader.unlock_bits=0x3F
atmega328bb.bootloader.lock_bits=0x0F

atmega328bb.build.mcu=atmega328p
atmega328bb.build.f_cpu=8000000L
atmega328bb.build.core=arduino:arduino
atmega328bb.build.variant=arduino:standard

Otherwise for older versions of Arduino use this:

##############################################################

atmega328bb.name=ATmega328 on a breadboard (8 MHz internal clock)

atmega328bb.upload.protocol=stk500
atmega328bb.upload.maximum_size=30720
atmega328bb.upload.speed=57600

atmega328bb.bootloader.low_fuses=0xE2
atmega328bb.bootloader.high_fuses=0xDA
atmega328bb.bootloader.extended_fuses=0x07
atmega328bb.bootloader.path=arduino:atmega
atmega328bb.bootloader.file=ATmegaBOOT_168_atmega328_pro_8MHz.hex
atmega328bb.bootloader.unlock_bits=0x3F
atmega328bb.bootloader.lock_bits=0x0F

atmega328bb.build.mcu=atmega328p
atmega328bb.build.f_cpu=8000000L
atmega328bb.build.core=arduino:arduino
atmega328bb.build.variant=arduino:standard
  • On Mac OS X:
    /Applications/Arduino.app/Contents/Resources/Java/hardware/arduino/
  • On Windows :
    hardware/arduino/
  • On Linux:
    /usr/share/arduino-1.0.5/hardware/arduino

    though the version number might be different.

  • Restart the Arduino IDE and you can now select ATmega328 on breadboard and upload

Programming

  • Get the latest repeater code from github
  • Make sure you update your node ID and location and other settings
  • Upload via serial to the board.
  • Some additional programming notes with tips for Windows users can be found here: Programming Arduino Nodes using Windows

Troubleshooting

  • Everything appears to run 8x slower
  • * Using an ICSP Programmer, 'Burn Bootloader' in the Arduino IDE to set the fuses. This will disable the DIVIDE-BY-8 function.
